Pactrol Gas Burner

New from Pactrol

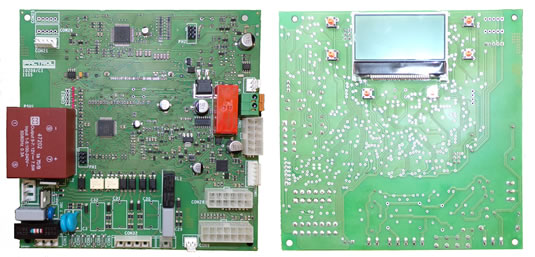

Pactrol Heat Interface Unit - Control Platform

Pactrol HIU Control
This is a new electronic control which is able to replace traditional mechanical HIU controls with an intelligent solution. Click HERE for more information.

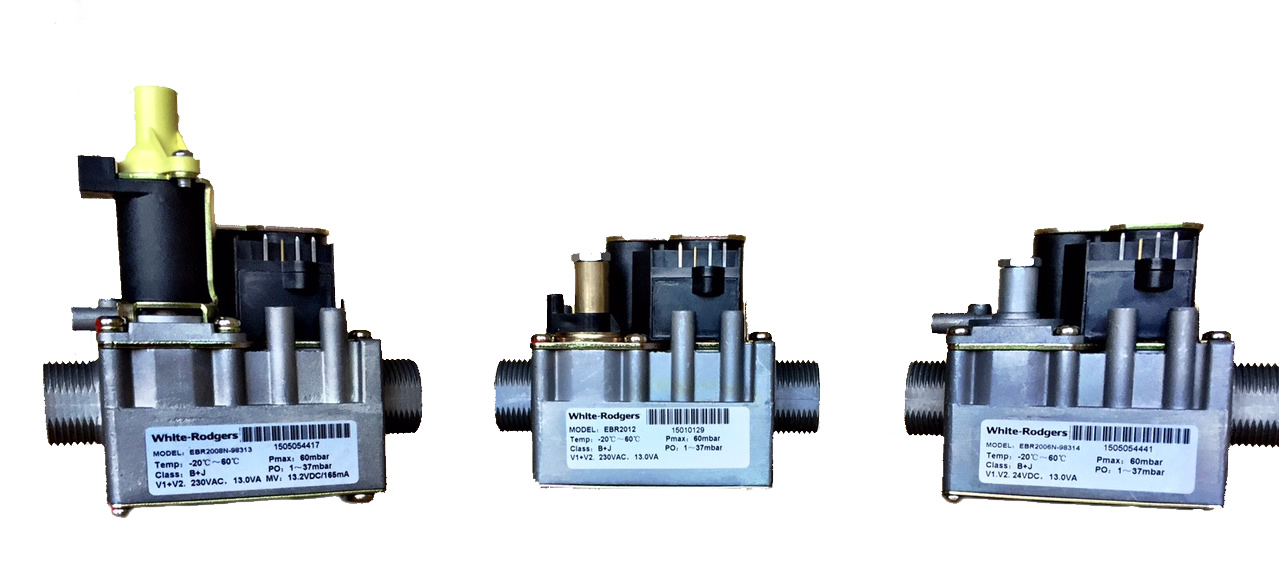

European Multifunctional Gas Control Valve Range

Gas Valves

The range of valves has been developed for use in gas fired domestic boilers, water heaters and light commercial appliances with automatic ignition systems.


  • CE Approval to normative reference EN126
  • Compact design suitable for installation in small modern boilers and appliances
  • Inlet /outlet test points, all adjustments accessible from the top of the valve.
  • Multipoise mounting with mesh inlet filter and corrosion resistant valve seats
  • Solenoids available (B+J) – 230V ac, 230V rac, 24V ac, 24V dc

    • 98310

  • 1:1 Pneumatic Air Modulation (PAM)
  • Accurate offset adjustment and main gas flow throttle
  • Suitable for all premix burner applications

    • 98313

  • Modulating 165mA coil or 230V hi/lo coil
  • Servo pressure regulator ensures stable outlet pressures
  • Pressure feedback ensures constant burner pressure on fanned appliances.

    • 98314

  • Single stage control
  • Fast, slow and adjustable slow opening options available
  • Servo pressure regulator ensures stable outlet pressures
  • Pressure feedback ensures constant burner pressure on fanned appliances.


    • All models are suitable for operation with the Pactrol P25F range of ignition controls. The P25F CVC can be mounted directly onto the valve for compact installation.
    CE Approved. For more information and OEM sales please contact our Sales team

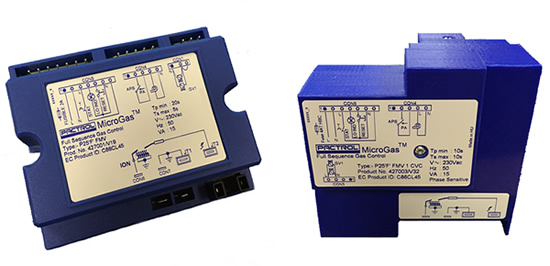

    New Pactrol P25F range

    P25F

    Our latest range of ignition controls is now fully compliant with EN298 2012.
    We are leading the way with this compliance requirement.
    These controls are suitable for all gas burning ignition applications in heating, industrial, leisure and catering markets.

    We have models with spark ignition, external spark, hot surface ignition and also available to mount directly onto our new White Rodgers Valve Range (CVC model)

    The models are for fanned and atmospheric appliances with the biggest range of timings and features on the market.

    We probably already have a code suitable for your requirements, but if not, our engineering team are always happy to discuss directly for special applications.
    For OEM sales and more information please contact our Sales Team


    Pactrol Biomass Control

    Pactrol Biomass Control

    We have a new range of controls suited for the high efficiency wood pellet appliances being launched in the European market. Our control can modulate the burner via the combustion fan and also work with a Lambda sensor to ensure optimum efficiency and flue emissions. We can also offer the following features as well as others on request:

  • auger control
  • ignition control
  • flame detection
  • fan control
  • temperature control
  • cleaning cycle
  • pump control
  • fuel level monitoring
  • water flow detection
  • and user interfaces are available to suit most requirements
    For OEM sales and more information please contact our Sales team
